BTS3405G

low-side power switch, DSO-8, 2.2 V ~ 10 V, 700 mOhm, 350mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~10.00

PartNumber:: BTS3405G

Brand:: Infineon Technologies AG - Infineon | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jayco's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-14

From Other Seller

Part Number:BTS3405G
US $0.10 - 10.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

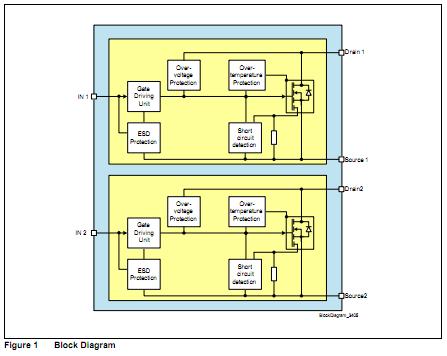

The BTS3405G is a two channel low-side power switch in PG-DSO-8-25 package providing embedded protective functions. The device consists of two separate monolithic IC. Each with one N-channel power MOSFET transistor and additional protection circuitry. The applications of the BTS3405G include designed for driving Relays in Automotive Applications, All types of resistive, inductive and capacitive loads, Suitable for loads with peak currents and Replaces discrete circuits.

Parametrics

BTS3405G absolute maximum ratings: (1)drain voltage, VD: 42V; (2)input voltage, VIN: -0.2 to 10V; (3)input current, IN: -2 to 2mA; (4)drain current, ID: 600mA; (5)operating temperature, Tj: -40 to 150℃; (6)storage temperature, Tstg: -55 to 150℃; (7)electrostatic discharge voltage, VESD: -2 to 2kV.

Features

BTS3405G features: (1)Low input current; (2)Short circuit and Overload protection; (3)Current limitation; (4)Input protection (ESD); (5)Thermal protection with auto restart; (6)Compatible to standard Power MOSFET; (7)Analog driving possible; (8)Two channel concept saves PCB footprint; (9)Green Product (RoHS compliant); (10)AEC Qualified.
