Product Summary

The BTS3410G is an N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions. The applications of the BTS3410G include All kinds of resistive, inductive and capacitive loads in switching or linear applications, μC compatible power switch for 12 V DC applications, Replaces electromechanical relays and discrete circuits.

Parametrics

BTS3410G absolute maximum ratings: (1)Drain source voltage, VDS: 42 V; (2)Drain source voltage for short circuit protection, Tj= -40 to 150℃, VDS(SC): 18V; (3)Continuous input current, IN: no limit when -0.2V ≤ VIN ≤ 10V; |IN|≤2mA when VIN < -0.2V or VIN > 10V; (4)Operating temperature, Tj: -40 to +150℃; (5)Storage temperature, Tstg: -55 to +150℃; (6)Power dissipation, Ptot: 0.8 W; (7)Unclamped single pulse inductive energy, each channel, EAS: 150mJ; (8)Load dump protection, VLD: 50 V; (9)Electrostatic discharge voltage, VESD: 2 kV.

Features

BTS3410G features: (1)Logic Level Input; (2)Input Protection (ESD); (3)Thermal shutdown with auto restart; (4)Overload protection; (5)Short circuit protection; (6)Overvoltage protection; (7)Current limitation; (8)Analog driving possible.

Diagrams

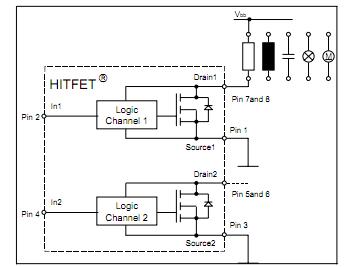

BTS3410G block diagram
