Product Summary
The BTS724G is an N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. It provides embedded protective functions. The applications of the BTS724G include μC compatible high-side power switch with diagnositc feedback for 12V and 24V grounded loads, all types of resistive, inductive and capacitive loads, most suitble for loads with high inrush currents, so as lamps and replaces electromechanical relays, fuses and discrete circuits.
Parametrics
BTS724G absolute maximum ratings: (1)Supply voltage (overvoltage protection): 43 V; (2)Supply voltage for full short circuit protection; Tj = -40 to 150℃: 36 V; (3)Load current (Short-circuit current): self-limited A; (4)Load dump protection VLoadDump = VA + VS; VA = 13.5 V: 60 V; (5)Operating temperature range: -40 to +150 ℃; (6)Storage temperature range: -55 to +150 ℃.
Features
BTS724G features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground.

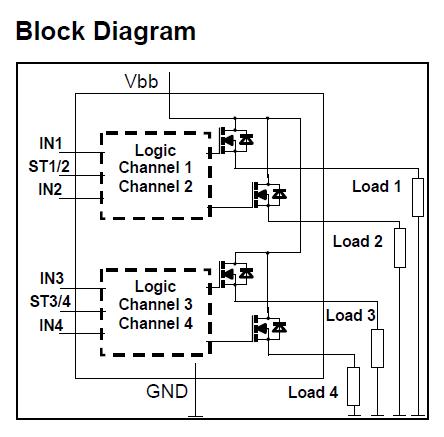

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTS724G |
Infineon Technologies |
Power Switch ICs - POE / LAN SMART HI SIDE PWR SWITCH INDUSTRY APP |
Data Sheet |
|
|
||||||||||||
