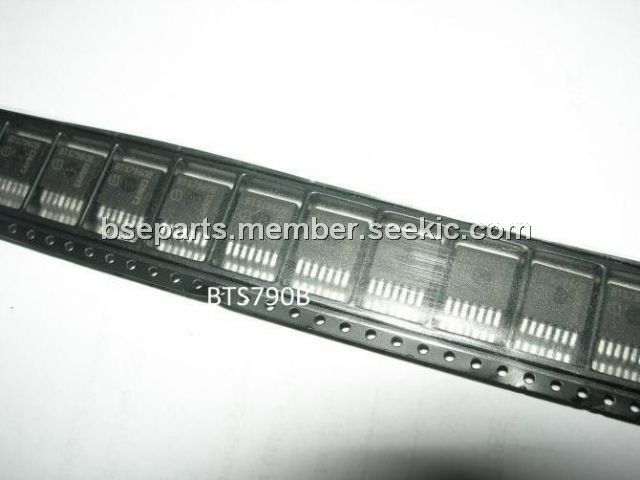

BTS7960B

high current half bridge, TO263-7, 5.5 V ~ 27.5 V, 7 mOhm, 43A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~10.00

PartNumber:: BTS7960B

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jayco's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-14

From Other Seller

Part Number:BTS7960B
US $0.10 - 10.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTS7960B is a kind of fully integrated high current half bridge for motor drive applications. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against overtemperature, overvoltage, undervoltage, overcurrent and short circuit. The BTS7960B is part of the NovalithICTM family containing one p-channel highside MOSFET and one n-channel lowside MOSFET with an integrated driver IC in one package.

Parametrics

BTS7960B absolute maximum ratings: (1)Supply voltage, VVS: -0.3 to 45 V; (2)Logic Input Voltage: VIN, VINH: -0.3 to 5.3 V; (3)HS/LS continuous drain current, ID(HS), ID(LS): -40 to 40 A when TC < 85℃ switch active; (4)HS pulsed drain current, ID(HS): -60 to 60 A when TC < 85℃; (5)LS pulsed drain current I tpulse = 10ms D(LS) -60 601) A; (6)Voltage at SR pin, VSR: -0.3 to 1.0 V; (7)Voltage between VS and IS pin, VVS -VIS: -0.3 to 45 V; (8)Voltage at IS pin, VIS: -20 to 45 V; (9)Junction temperature, Tj: -40 to 150 ℃; (10)Storage temperature, Tstg: -55 to 150℃.

Features

BTS7960B features: (1)Path resistance of typ. 16 mΩ@ 25℃; (2)Low quiescent current of typ. 7 μA @ 25℃; (3)PWM capability of up to 25 kHz combined with active freewheeling; (4)Switched mode current limitation for reduced power dissipation in overcurrent; (5)Current limitation level of 43 A typ.; (6)Status flag diagnosis with current sense capability; (7)Overtemperature shut down with latch behaviour; (8)Overvoltage lock out; (9)Undervoltage shut down; (10)Driver circuit with logic level inputs; (11)Adjustable slew rates for optimized EMI.
