EN87C196KDH

EN87C196KDH, 16-bit, microcontroller, PLCC68, -0.5V to +7.0V, 0.43W, -0.5V to +13.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~50.00

PartNumber:: EN87C196KDH

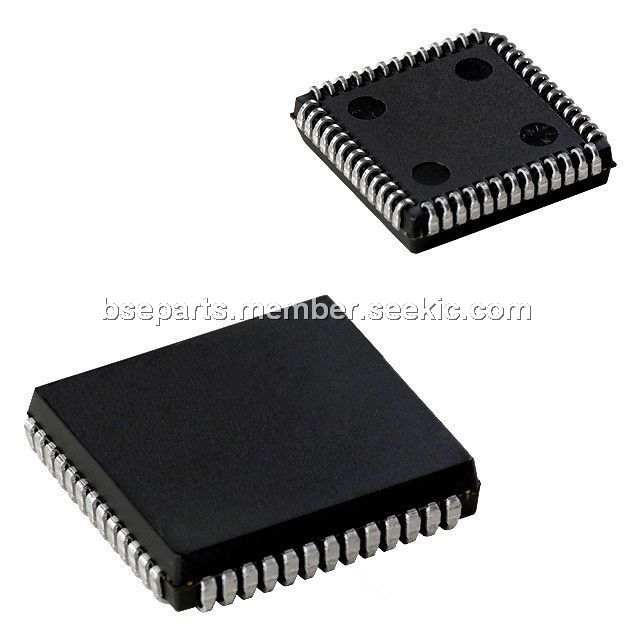

Brand:: Intel Corporation - Intel | Pack: PLCC | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jayco's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:EN87C196KDH
US $1.00 - 50.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

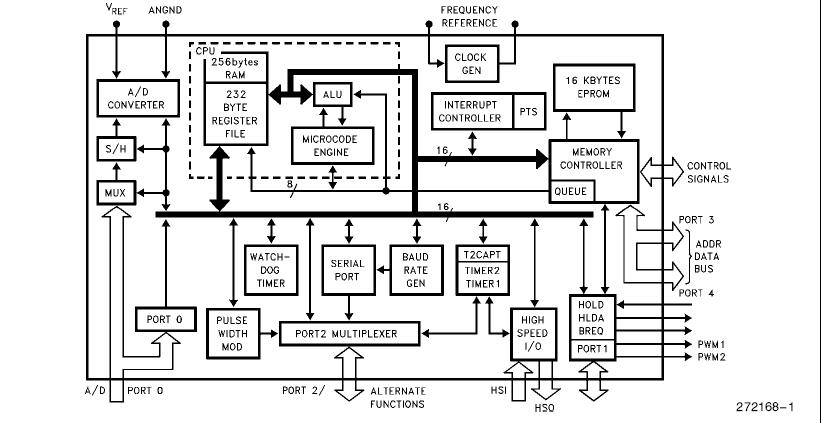

The EN87C196KDH 16-bit microcontroller is a high-performance member of the MCS 96 microcontroller family. The EN87C196KDH is an enhanced 8XC196KC device with 1000 bytes RAM, 16 MHz operation and 32 Kbytes of on-chip EPROM. Intel’s CHMOS process provides a high-performance processor along with low power consumption.

Parametrics

EN87C196KDH absolute maximum ratings: (1)Ambient Temperature Under Bias: -40℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage On Any Pin to VSS Except EA and VPP: -0.5V to +7.0V; (4) Voltage from EA or VPP to VSS: -0.5V to +13.0V; (5) Power Dissipation: 0.43W.

Features

EN87C196KDH features: (1)-40℃ to +125℃; (2)32 Kbytes of On-Chip EPROM; (3)232 Byte Register File; (4)768 Bytes of Additional RAM; (5)Register-to-Register Architecture; (6)28 Interrupt Sources/16 Vectors; (7)Peripheral Transaction Server; (8)1.75μs 16 x 16 Multiply (16 MHz); (9)3.0μs 32/16 Divide (16 MHz); (10)Powerdown and Idle Modes; (11)Five 8-Bit I/O Ports; (12)16-Bit Watchdog Timer; (13)Dynamically Configurable 8-Bit or 16-Bit Buswidth ; (14)Full Duplex Serial Port; (15)High Speed I/O Subsystem; (16)16-Bit Timer; (17)16-Bit Up/Down Counter with Capture; (18)3 Pulse-Width-Modulated Outputs; (19)Four 16-Bit Software Timers; (20)8- or 10-Bit 8-Channel A/D Converter with Sample/Hold; (21)HOLD/HLDA Bus Protocol; (22)OTP One-Time Programmable and QROM Versions; (23)Available in 12 MHz and 16 MHz Versions; (24)16 MHz Operation.
