Product Summary

The C8051F340-GQR is a mixed-Signal 8KB ISP flash MCU.

Parametrics

C8051F340-GQR absolute maximum ratings: (1)Ambient temperature under bias: –55 to 125 °C; (2)Storage Temperature: –65 to 150 °C; (3)Voltage on any Port I/O Pin or /RST with respect to GND: –0.3 to 5.8 V; (4)Voltage on VDD with respect to GND: –0.3 to 4.2 V; (5)Maximum Total current through VDD and GND: 500 mA; (6)Maximum output current sunk by /RST or any Port pin: 100 mA.

Features

C8051F340-GQR features: (1)USB specification 2.0 compliant; (2)Full speed (12 Mbps) or low speed (1.5 Mbps) operation; (3)Integrated clock recovery; no external crystal required for full speed or low speed; (4)On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (No emulator required); (5)Pipelined instruction architecture; executes 70% of Instructions in 1 or 2 system clocks.

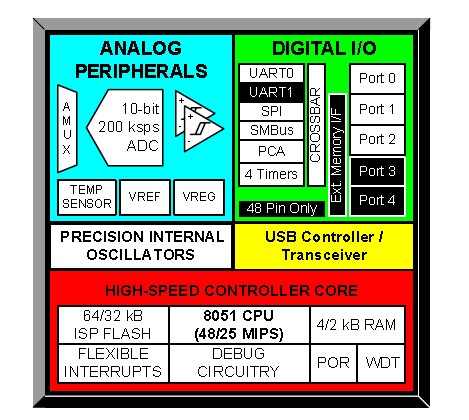

Diagrams

C8051F340-GQR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
C8051F340-GQR
C8051F340-GQR
Silicon Labs
8-bit Microcontrollers (MCU) 48 MIPS 64KB 10ADC
Data Sheet
0-500: $4.06
500-1000: $3.94
