EN87C196KC20

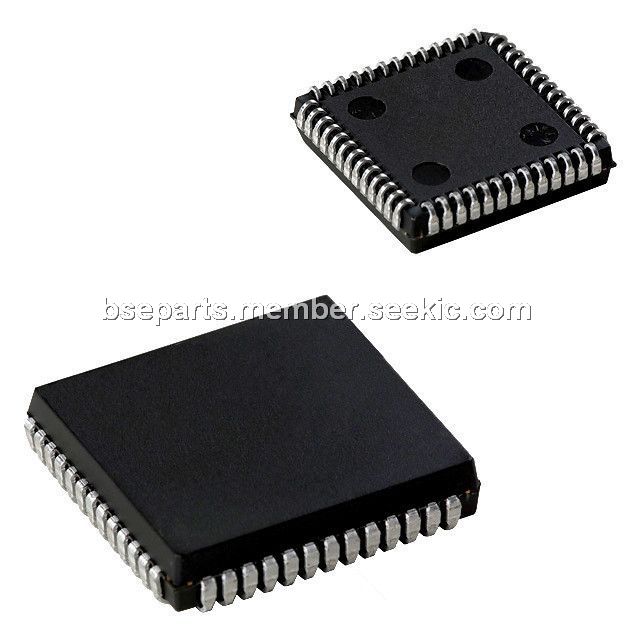

EN87C196KC20, 16-bit, microcontroller, 68-Pin PLCC, -0.5V to +7.0V, 13.0V, 1.5W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~50.00

PartNumber:: EN87C196KC20

Brand:: Intel Corporation - Intel | Pack: PLCC | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jayco's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:EN87C196KC20
US $1.00 - 50.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

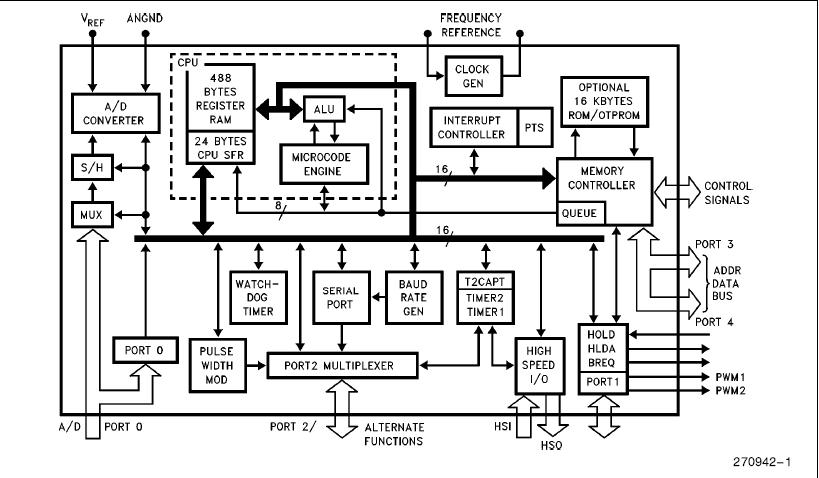

The EN87C196KC20 16-bit microcontroller is a high performance member of the MCS 96 microcontroller family. The EN87C196KC20 is an enhanced 80C196KB device with 488 bytes RAM, 16 and 20 MHz operation and an optional 16 Kbytes of ROM/OTPROM. Intel’s CHMOS III process provides a high performance processor along with low power consumption. The EN87C196KC20 is an 80C196KC with 16 Kbytes on-chip OTPROM.

Parametrics

EN87C196KC20 absolute maximum ratings: (1)Ambient Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin to VSS: -0.5V to +7.0V; (4) Voltage from EA or VPP to VSS or ANGND: 13.00V; (5) Power Dissipation: 1.5W.

Features

EN87C196KC20 features: (1)16 and 20 MHz Available; (2)488 Byte Register RAM; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)Peripheral Transaction Server; (6)1.4 ms 16 x 16 Multiply (20 MHz); (7)2.4 ms 32/16 Divide (20 MHz); (8)Power down and Idle Modes; (9)Five 8-Bit I/O Ports; (10)16-Bit Watchdog Timer; (11)Extended Temperature Available; (12)Dynamically Configurable 8-Bit or 16-Bit Buswidth; (13)Full Duplex Serial Port; (14)High Speed I/O Subsystem; (15)16-Bit Timer; (16)16-Bit Up/Down Counter with Capture; (17)3 Pulse-Width-Modulated Outputs; (18)Four 16-Bit Software Timers; (19)8- or 10-Bit A/D Converter with Sample/Hold; (20)HOLD/HLDA Bus Protocol; (21)OTPROM One-Time Programmable Version.
