Product Summary
The LM317LMX/NOPB is an adjustable 3-terminal positive voltage regulator capable of supplying 100mA over a 1.2V to 37V output range. It is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators. Also, the LM317LMX/NOPB is available packaged in a standard TO-92 transistor package which is easy to use. In addition to higher performance than fixed regulators, the LM317LMX/NOPB offers full overload protection. Included on the chip are current limit, thermal overload protection and safe area protection. All overload protection circuitry remains fully functional even if the adjustment terminal is disconnected.
Parametrics
LM317LMX/NOPB absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Input-Output Voltage Differential: 40V; (3)Operating Junction Temperature Range: -40℃ to +125℃; (4)Storage Temperature: -55℃ to +150℃; (5)Lead Temperature (Soldering, 4 seconds): 260℃; (6)Output is Short Circuit Protected; (7)ESD rating to be determined.
Features
LM317LMX/NOPB features: (1)Adjustable output down to 1.2V; (2)Guaranteed 100 mA output current; (3)Line regulation typically 0.01%V; (4)Load regulation typically 0.1%; (5)Current limit constant with temperature; (6)Eliminates the need to stock many voltages; (7)Standard 3-lead transistor package; (8)80 dB ripple rejection; (9)Available in TO-92, SO-8, or 6-Bump micro SMD package; (10)Output is short circuit protected.

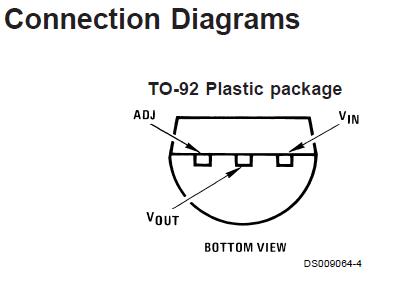

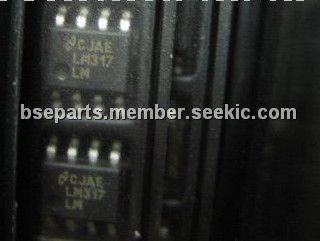

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM317LMX/NOPB |
National Semiconductor (TI) |
Linear Regulators - Standard 3-TERMINAL ADJ REG |
