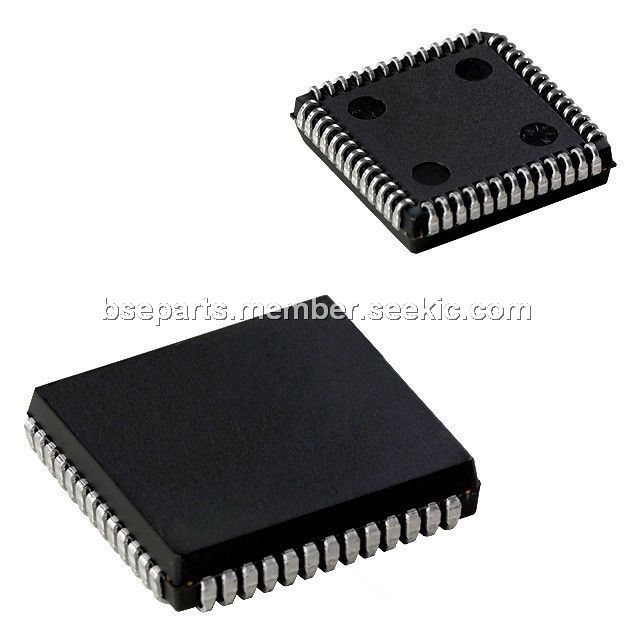

P87C750EBAA

P87C750EBAA, CMOS single-chip 8-bit microcontroller, 10mA, 1.0W, 0 to 13V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~25.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~25.00

PartNumber:: P87C750EBAA

Brand:: NXP Semiconductors - nxp | Pack: PLCC | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jayco's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:P87C750EBAA
US $1.00 - 25.00
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The P87C750EBAA is an 8-bit microcontroller. The P87C750EBAA is fabricated with Philips high-density CMOS technology. Philips epitaxial substrate minimizes CMOS latch-up sensitivity. The P87C750EBAA contains a 1k×8 EPROM, a 64×8 RAM, 19 I/O lines, a 16-bit auto-reload counter/timer, a five-source, fixed-priority level interrupt structure and an on-chip oscillator.

Parametrics

P87C750EBAA absolute maximum ratings: (1)Storage temperature range: –65 to +150℃; (2)Voltage from VCC to VSS: –0.5 to +6.5 V; (3)Voltage from any pin to VSS (except VPP): –0.5 to VCC + 0.5V; (4)Power dissipation: 1.0W; (5)Voltage on VPP pin to VSS: 0 to +13.0V; (6)Maximum IOL per I/O pin: 10mA.

Features

P87C750EBAA features: (1)80C51 based architecture; (2)Oscillator frequency range梪p to 16MHz; (3)Small package sizes; (4)24-pin DIP (300 mil :skinny DIP"; (5)24-pin Shrink Small Outline Package; (6)28-pin PLCC; (7)87C750 available in one-time programmable plastic packages; (8)Low power consumption:; (9)Normal operation: less than 11mA @ 5V, 12MHz; (10)Idle mode; (11)Power-down mode; (12)1k×8 EPROM (87C750); (13)64×8 RAM; (14)16-bit auto reload able counter/timer; (15)Boolean processor; (16)CMOS and TTL compatible; (17)Well suited for logic replacement, consumer and industrial applications; (18)LED drive outputs.
