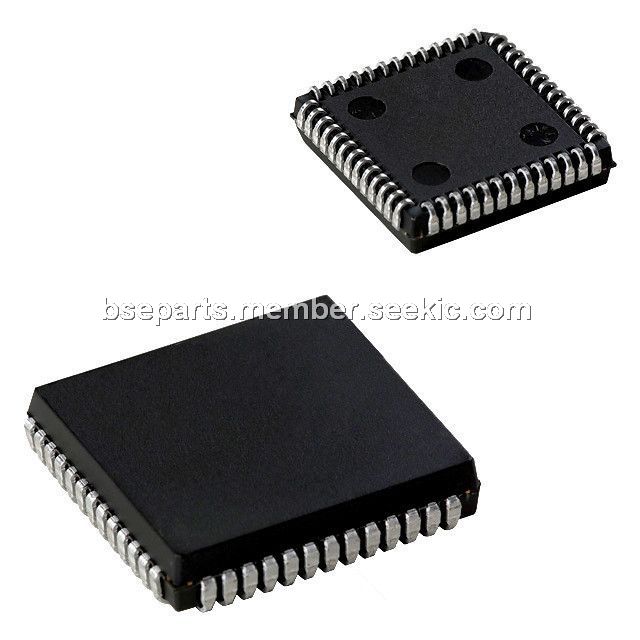

Brand:: NXP Semiconductors - nxp | Pack: PLCC | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jayco's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:S87C751-4A28
US $1.00 - 25.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

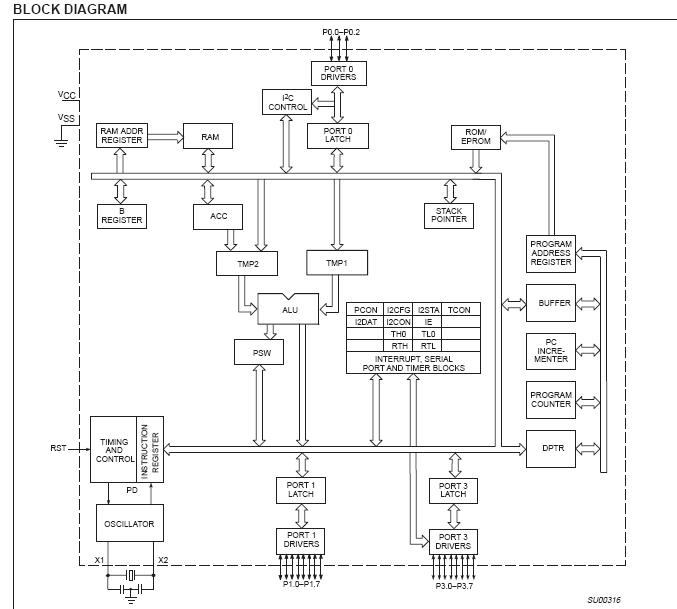

The S87C751-4A28 is an 8-bit microcontroller. It is fabricated with Philips high-density CMOS technology. Philips epitaxial substrate minimizes CMOS latch-up sensitivity. The S87C751-4A28 contains a 2k × 8 ROM (83C751) EPROM (87C751), a 64 × 8 RAM, 19 I/O lines, a 16-bit auto-reload counter/timer, a five-source, fixed-priority level interrupt structure, a bidirectional inter-integrated circuit (I2C) serial bus interface, and an on-chip oscillator.

Parametrics

S87C751-4A28 absolute maximum ratings: (1)Storage temperature range: –65 to +150 ℃; (2)Voltage from VCC to VSS: –0.5 to +6.5 V; (3) Voltage from any pin to VSS (except VPP): –0.5 to VCC + 0.5 V; (4)Power dissipation: 1.0 W; (5)Voltage on VPP pin to VSS: 0 to +13.0 V; (6)Maximum IOL per I/O pin: 10mA.

Features

S87C751-4A28 features: (1)80C51 based architecture; (2)Inter-Integrated Circuit (I2C) serial bus interface; (3)87C751 available in one-time programmable plastic packages; (4)Wide oscillator frequency range; (5)16-bit auto reloadable counter/timer; (6)Fixed-rate timer; (7)Boolean processor; (8)CMOS and TTL compatible; (9)Well suited for logic replacement, consumer and industrial applications; (10)LED drive outputs.
