Product Summary
The TLE7230R is an Octal Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and eight open drain DMOS output stages. The TLE7230R is protected by embedded protection functions and designed for automotive applications.
Parametrics
TLE7230R absolute maximum ratings: (1)Supply Voltage, VS: -0.3 to + 6 V; (2)Continuous Drain Source Voltage, VDS: 48 V; (3)Input Voltage, All Inputs and Data Lines, VIN: - 0.3 to + 6V; (4)Operating Temperature Range, Tj: -40 to 150℃; (5)Storage Temperature Range, Tstg: -55 to 150℃; (6)Output Current per Channel (see el. characteristics), ID(lim): ID(lim)min; (7)Reverse current per channel, IR: - ID(lim)min; (8)Output Clamping Energy (single pulse), EAS: tbd mJ; (9)Electrostatic Discharge Voltage, VESD: 2000V.
Features
TLE7230R features: (1)Full Protection: Overload; Overtemperature; Overvoltage; (2)Low Quiescent Current< 10μA; (3)16 bit SPI (for Daisychain); (4)Direct Parallel Control of Four Channels; (5)PWM input (demux); (6)Parallel Inputs High or Low Active Programmable; (7)Programmable functions: Boollean operation; Overload behavior; (8)Overtemperature behavior; Switching time; (9)General Fault Flag; (10)Digital Ports Compatible to 5V and 3,3 V Micro Controllers; (11)Electostatic Discharge (ESD) Protection; (12)Full reverse current capability without latchup or loss of function.

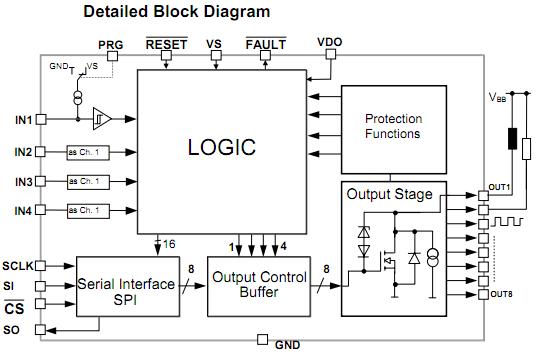

Diagrams

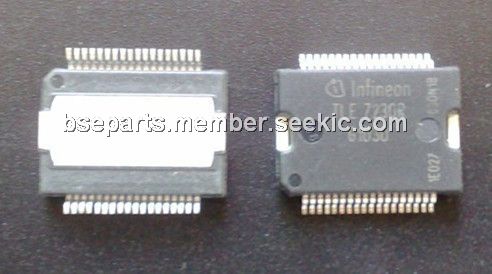

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE7230R |
Infineon Technologies |
Power Switch ICs - Power Distribution IC POWER SWITCH LOW SIDE 1A |
Data Sheet |
|
|
||||||||||||
