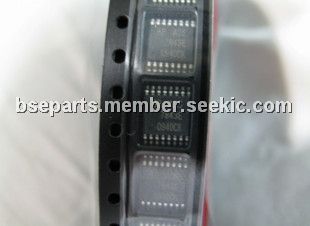

Product Summary

The ADS7843E is a 12-bit sampling analog-to-digital converter (ADC) with a synchronous serial interface and low on-resistance switches for driving touch screens. Typical power dissipation is 750μW at a 125kHz throughput rate and a +2.7V supply. The reference voltage (VREF) can be varied between 1V and +VCC, providing a corresponding input voltage range of 0V to VREF. The ADS7843E includes a shutdown mode which reduces typical power dissipation to under 0.5μW. The ADS7843 is guaranteed down to 2.7V operation. The applications of the ADS7843E inlcude personal digital assistants, portable instruments, point-of-sales terminals, pagers and touch-screen monitors.

Parametrics

ADS7843E absolute maximum ratings: (1)+VCC to GND: –0.3V to +6V; (2)Analog Inputs to GND:–0.3V to +VCC + 0.3V; (3)Digital Inputs to GND: –0.3V to +VCC + 0.3V; (4)Power Dissipation: 250mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range: –40 to +85℃; (7)Storage Temperature Range: –65 to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

ADS7843E features: (1)4-wire touch screen interface; (2)ratiometric conversion; (3)single supply: 2.7V to 5V; (4)up to 125kHz conversion rate; (5)serial interface; (6)programmable 8- or 12-bit resolution; (7)2 auxiliary analog inputs; (8)full power-down control.

Diagrams

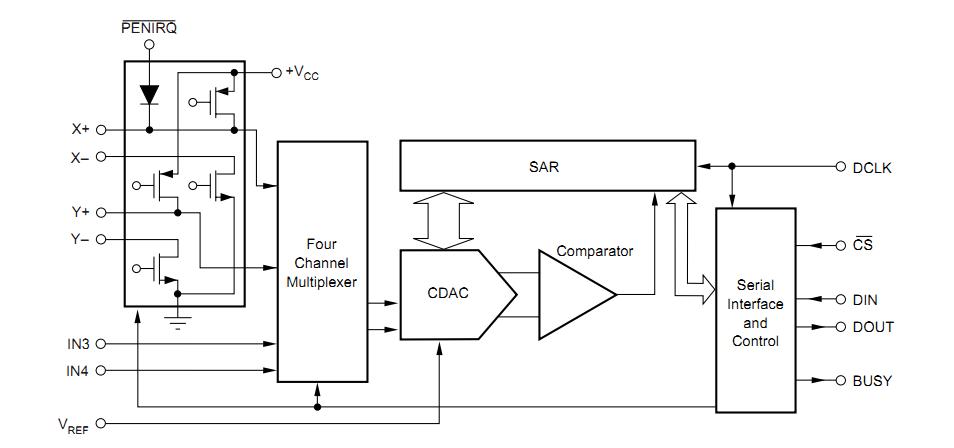

ADS7843E block diagram
