Product Summary
The BSP752T is an N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. The BSP752T provides embedded protective functions. The applications of the BSP752T include All types of resistive, inductive and capacitive loads, μC compatible power switch for 12 V, 24 V and 42 V DC applications and Replaces electromechanical relays and discrete circuits.
Parametrics
BSP752T absolute maximum ratings: (1)Supply voltage Vbb: 52 V; (2)Supply voltage for full short circuit protection Vbb(SC): 50; (3)Continuous input voltage VIN: -10 to +16; (4)Load current (Short - circuit current, see page 5) IL: self limited A; (5)Current through input pin (DC) IIN: ± 5 mA; (6)Operating temperature Tj: -40 to +150 ℃; (7)Storage temperature Tstg: -55 to +150; (8)Power dissipation 1) Ptot: 1.5 W.
Features
BSP752T features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown with restart; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection with external resistor; (8)CMOS compatible input; (9)Loss of GND and loss of Vbb protection; (10)ESD - Protection.

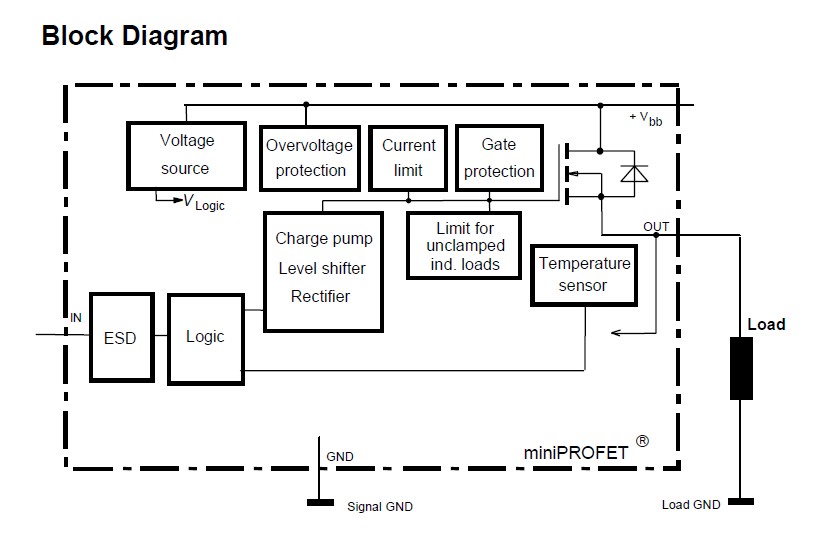

Diagrams
