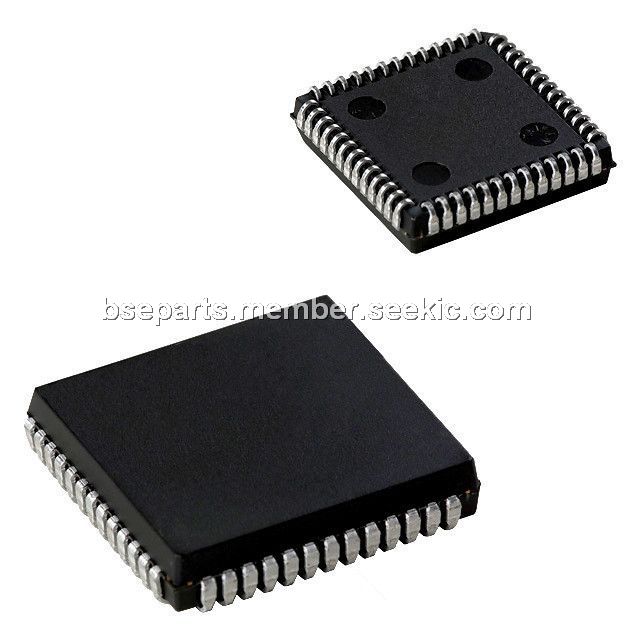

N87C198-16

N87C198-16, commercial/express CHMOS microcontroller, PLCC52, -0.3V to +7.0V, 1.5W, 3.5 to 16MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~50.00

PartNumber:: N87C198-16

Brand:: Intel Corporation - Intel | Pack: PLCC | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jayco's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-07

From Other Seller

Part Number:N87C198-16
US $1.00 - 50.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The N87C198-16 is a commercial/express CHMOS microcontroller. The N87C198-16 provides a high performance processor along with low power consumption. To further reduce power requirements, the processor can be placed into Idle or Powerdown Mode. The N87C198-16 is the 8-bit bus version of the 8XC196KB. The prefixes mean: 80 (ROMless), 83 (ROM), 87 (OTP) One Time Programmable. The ROM and OTP are available in 8 Kbytes.

Parametrics

N87C198-16 absolute maximum ratings: (1)Ambient Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature : -65℃ to +150℃; (3)Voltage on VPP or EA to VSS or ANGND: -0.3V to +13.0V; (4)Voltage on Any Other Pin to VSS: -0.5V to +7.0V; (5)Power Dissipation: 1.5W.

Features

N87C198-16 features: (1)8 Kbytes of On-Chip OTPROM or ROM; (2)232 Byte Register File; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)1.75μs 16 x 16 Multiply (16 MHz); (6)3.0μs 32/16 Divide (16 MHz); (7)Powerdown and Idle Modes; (8)16-Bit Watchdog Timer; (9)8-Bit External Bus; (10)16 MHz Standard; (11)Full Duplex Serial Port; (12)High Speed I/O Subsystem; (13)16-Bit Timer; (14)16-Bit Counter; (15)Pulse-Width-Modulated Output; (16)Four 16-Bit Software Timers; (17)10-Bit A/D Converter with Sample/Hold; (18)Extended Temperature Available.
