Product Summary
The CC1101RTKR is a low-cost sub- 1 GHz transceiver designed for very low-power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868, and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-348 MHz, 387-464 MHz and 779-928 MHz bands. The CC1101RTKR provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio.
Parametrics
Absolute maximum ratings: (1)Supply voltage: –0.3 to 3.9 V at All supply pins must have the same voltage; (2)Voltage on any digital pin: –0.3 to VDD + 0.3 max 3.9 V; (3)Voltage on the pins RF_P, RF_N, and DCOUPL: –0.3 to 2.0 V; (4)Voltage ramp-up rate: 120 kV/μs max; (5)Input RF level: +10 dBm max; (6)Storage temperature range: –50 to 150 ℃; (7)Solder reflow temperature: 260 ℃ according to IPC/JEDEC J-STD-020C; (8)ESD: 750 V according to JEDEC STD 22, method A114, Human Body Model (HBM); (9)ESD: 400 V according to JEDEC STD 22, C101C, Charged Device Model (CDM).
Features
Features: (1)Few external components: Completely onchip frequency synthesizer, no external filters or RF switch needed; (2)Green package: RoHS compliant and no antimony or bromine; (3)Small size (QLP 4x4 mm package, 20 pins); (4)Suited for systems targeting compliance with EN 300 220 (Europe) and FCC CFR Part 15 (US).; (5)Support for asynchronous and synchronous serial receive/transmit mode for backwards compatibility with existing.

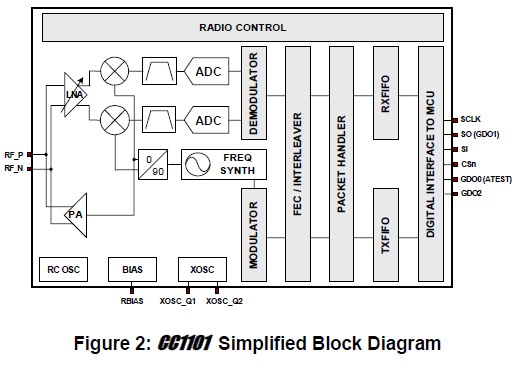

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CC1101RTKR |
Texas Instruments |
RF Transceiver Lo-Pwr Sub-1GHz RF Trans |
Data Sheet |
|
|
||||||||||||
 |
CC1101RTKRG3 |
Texas Instruments |
RF Transceiver Low-Power Sub-1GHz RF Xceiver |
Data Sheet |
|
|
||||||||||||
