Product Summary

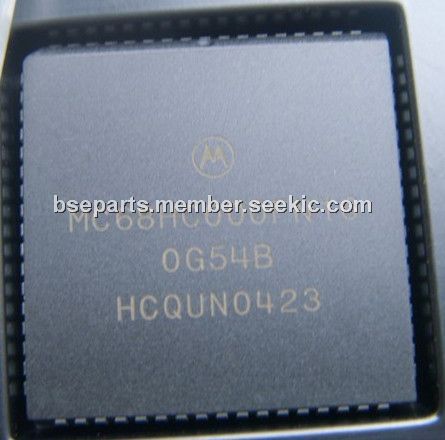

The MC68HC000FN16 is an implementation of the M68000 16/-32 bit microprocessor architecture. The MC68HC000FN16 has a 16-bit data bus implementation of the MC68000 and is upward code-compatible with the MC68010 and the MC68020 32-bit implementation of the architecture.
Parametrics
MC68HC000FN16 absolute maximum ratings: (1)Supply Voltage: -0.3 to 6.5 V; (2)Input Voltage: -0.5 to 6.5 V; (3)Maximum Operating: TL to TH ℃; (4)Temperature Range: 0 to 70 ℃; (5)Commercial Extended "C" Grade: -40 to 85 ℃; (6)Storage Temperature: -55 to 150 ℃.
Features
MC68HC000FN16 features: (1) Sixteen 32-Bit Data and Address Registers; (2)16-Mbyte Direct Addressing Range; (3) Program Counter; (4)6 Instruction Types; (5) Operations on Five Main Data Types; (6) Memory-Mapped Input/Output (I/O); (7)14 Addressing Modes.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68HC000FN16 |
|
IC MPU 32BIT 16MHZ 68-PLCC |
Data Sheet |
Negotiable |
|
||||
|
MC68HC000FN16R2 |
|
IC MPU 32BIT 16MHZ 68-PLCC |
Data Sheet |
Negotiable |
|
||||
