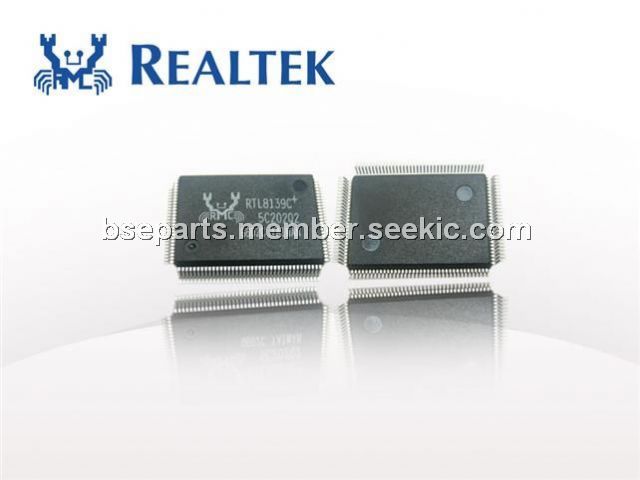

RTL8139CL

Product Summary

The Realtek RTL8139CL is a highly integrated and cost-effective single-chip Fast Ethernet controller that provides 32-bit performance, PCI bus master capability, and full compliance with IEEE 802.3u 100Base-T specifications and IEEE 802.3x Full Duplex Flow Control. It also supports Advanced Configuration Power management Interface (ACPI), PCI power management for modern operating systems that are capable of Operating System Directed Power Management (OSPM) to achieve the most efficient power management possible. The RTL8139CL is suitable for applications such as CardBus or mobile devices with a built-in network controller. The CIS data can be stored in either a 93C56 EEPROM or expansion ROM. In addition to the ACPI feature, the RTL8139CL also supports remote wake-up (including AMD Magic Packet, LinkChg, and Microsoft wake-up frame) in both ACPI and APM environments. The RTL8139CL is capable of performing an internal reset through the application of auxiliary power. When auxiliary power is on and the main power remains off, the RTL8139CL is ready and waiting for the Magic Packet or Link Change to wake the system up. Also, the LWAKE pin provides 4 different output signals including active high, active low, positive pulse, and negative pulse. The versatility of the RTL8139CL LWAKE pin provides motherboards with the Wake-On-LAN (WOL) function. The RTL8139CL also supports Analog Auto-Power-down, that is, the analog part of the RTL8139CL can be shut down temporarily according to user requirements or when the RTL8139CL is in a power down state with the wakeup function disabled. In addition, when the analog part is shut down and the IsolateB pin is low (i.e. the main power is off), then both the analog and digital parts stop functioning and power consumption of the RTL8139CL will be negligible. The RTL8139CL also supports an auxiliary power auto-detect function, and will auto-configure related bits of their own PCI power management registers in PCI configuration space.

Parametrics

Absolute maximum ratings: (1)Storage temperature: -55 to +125℃; (2)Operating temperature: 0 to 70℃; (3)Minimum High Level Output Voltage, IOH= -8mA, VOH: 0.9 * Vcc to Vcc V; (4)Maximum Low Level Output Voltage, IOL= 8mA, VOL: 0.1 * Vcc V; (5)Minimum High Level Input Voltage, VIN=VCC or GND, VIH: 0.5 * Vcc Vcc+0.5 V; (6)Maximum Low Level Input Voltage, VIN=VCC or GND, VIL: -0.5 to 0.3 * Vcc V; (7)Input Current, VIN=VCC or GND, IIN: -1.0 to 1.0uA; (8)Tri-State Output Leakage Current, VOUT=VCC or GND, IOZ: -10 to 10uA; (9)Average Operating Supply Current, IOUT=0mA, ICC: -10 to 150 .

Features

Features: (1)128 pin QFP/LQFP; (2)Integrated Fast Ethernet MAC, Physical chip and transceiver in one chip; (3)10 Mb/s and 100 Mb/s operation; (4)Supports 10 Mb/s and 100 Mb/s N-way Auto-negotiation operation; (5)PCI local bus single-chip Fast Ethernet controller; (6)Supports CardBus. The CIS can be stored in 93C56 or expansion ROM; (7)Supports up to 128K bytes Boot ROM interface for both EPROM and Flash memory; (8)Supports 25MHz crystal or 25MHz OSC as the internal clock source; (9)Compliant to PC99 standard; (10)Supports Wake-On-LAN function and remote wake-up; (11)Supports 4 Wake-On-LAN (WOL) signals (active high, active low, positive pulse, and negative pulse).

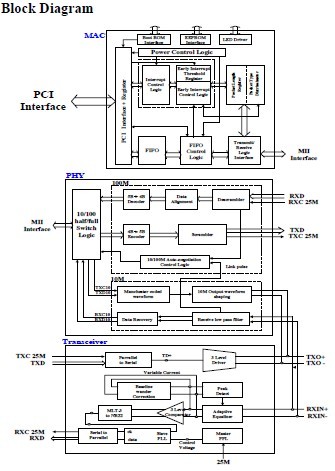

Diagrams
