Product Summary
The BSP752R is an N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. The applications of the BSP752R include All types of resistive, inductive and capacitive loads, μC compatible power switch for 12 V, 24 V and 42 V DC applications and Replaces electromechanical relays and discrete circuits.
Parametrics
BSP752R absolute maximum ratings: (1)Supply voltage Vbb: 52 V; (2)Supply voltage for full short circuit protection Vbb(SC): 50 V; (3)Continuous input voltage VIN: -10 to +16 V; (4)Load current (Short - circuit current) IL: self limited A; (5)Current through input pin (DC) IIN: ± 5 mA; (6)Operating temperature Tj: -40 to +150 ℃; (7)Storage temperature Tstg: -55 to +150 ℃; (8)Power dissipation Ptot: 1.5 W; (9)Inductive load switch-off energy dissipation single pulse, Tj =150 ℃, IL = 1 A EAS: 125 mJ.
Features
BSP752R features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown with restart; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection with external resistor; (8)Open drain diagnostic output for overtemperature and short circuit; (9)Open load detection in OFF - State with external resistor; (10)CMOS compatible input; (11)Loss of GND and loss of Vbb protection; (12)ESD - Protection; (13)Very low standby current.

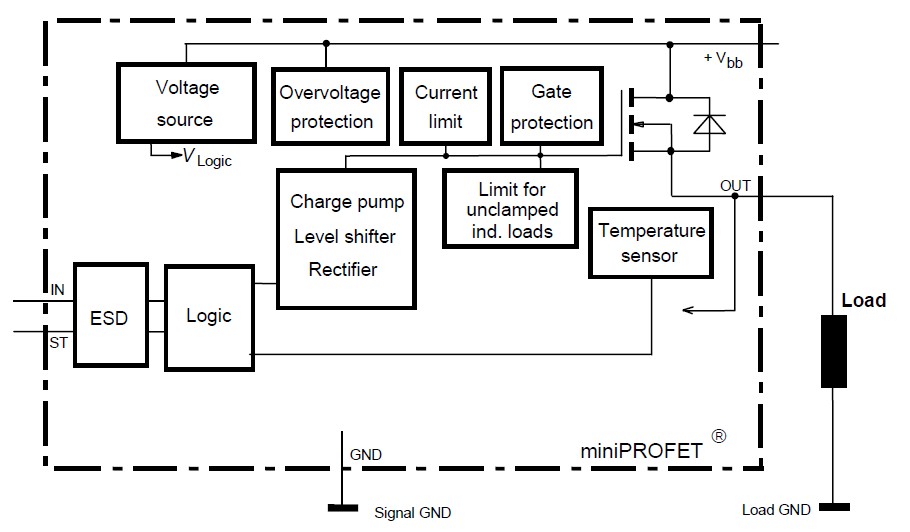

Diagrams
