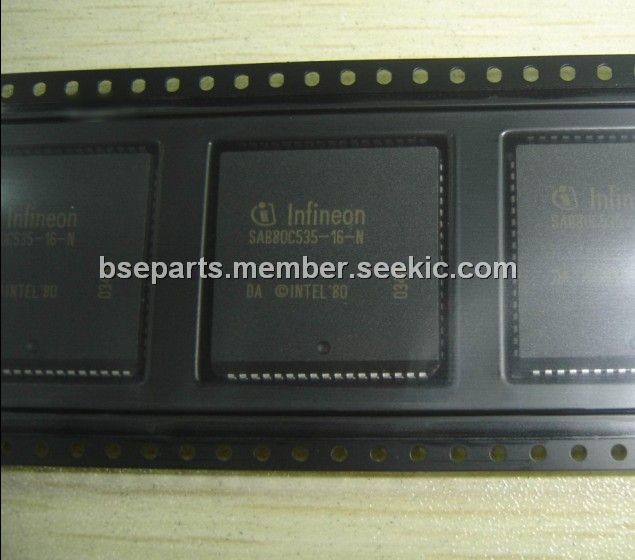

SAB80C535-16-N

Product Summary

The SAB80C535-16-N is a powerful member of the Siemens SAB 8051 family of 8-bit microcontrollers. It is designed in Siemens ACMOS technology and is functionally compatible with the SAB 80515/80535 devices designed in MYMOS technology. The SAB80C535-16-N is a stand-alone, high-performance single-chip microcontroller based on the SAB 8051/80C51 architecture. While maintaining all the SAB 80C51 operating characteristics, the SAB80C535-16-N incorporates several enhancements which significantly increase design flexibility and overall system performance. In addition, the low-power properties of Siemens ACMOS technology allow applications where power consumption and dissipation are critical. Furthermore, the SAB80C535-16-N has two software-selectable modes of reduced activity for further power reduction: idle and powerdown mode.

Parametrics

Absolute Maximum Ratings: (1)SAB 80C515-T3: -40 to 85℃; (2)Storage temperature: -65 to 150℃; (3)Voltage on VCC pins with respect to ground (VSS): -0.5 to 6.5V; (4)Voltage on any pin with respect to ground (VSS): -0.5 to VCC+0.5V; (5)Input current on any pin during overload condition: -10mA to + 10mA; (6)Absolute sum of all input currents during overload condition: ±100 mA; (7)Power disipation: 2W.

Features

Features: (1)8 K × 8 ROM (SAB 80C515 only); (2)256 ×8 RAM; (3)Six 8-bit I/O ports, one input port for digital or analog input; (4)Three 16-bit timer/counters; (5)Highly flexible reload, capture, compare capabilities; (6)Full-duplex serial channel; (7)Twelve interrupt vectors, four priority levels; (8)8-bit A/D converter with 8 multiplexed inputs and programmable internal reference voltages; (9)16-bit watchdog timer; (10)Boolean processor; (11)Most instructions execute in 1 ms (750 ns); (12)4 ms (3 ms) multiply and divide; (13)External memory expandable up to 128 Kbytes; (14)Backwardly compatible with SAB 8051; (15)Functionally compatible with SAB 80515; (16)Idle and power-down mode; (17)Plastic leaded chip carrier package: P-LCC-68; (18)Plastic Metric Quad Flat Package P-MQFP-80; (19)Two temperature ranges available: 0 to 70℃ (for 12, 16, 20 MHz) –40 to 85℃ (for 12, 16 MHz).

Diagrams
